Regulating Valve Series
Linear Globe/Angle Control Valves

Linear Globe/Angle Control Valves

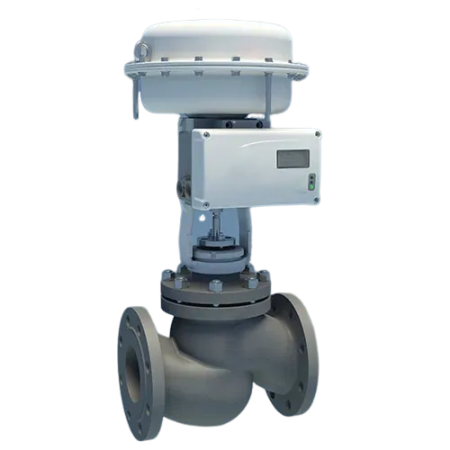

5500

The modular design allows you to use the same body with different types of bonnets, trims and actuators. This leads to the reduction of spare parts and offers an interchangeable valve for a broad range of industries and applications.

  • Excellent control performance with precision machined plug contours and long stroke lengths
  • Easy upgrade from standard trims to low noise or cavitation control trims
  • PED 97/23/EC Module H
  • DIN EN 161, DIN 3394
  • TA-Luft VDI 2440 (Clean Air Act) / DIN EN ISO 15848-1
  • ATEX 94/9/EC, Machinery directive 98/37/EC
  • DIN, EN, AD-Merkblatt 2000, ANSI, ASTM, ISA
  • EN 1349, EN 60534
  • NAMUR

  • Excellent control performance with precision machined plug contours and long stroke lengths
  • Easy upgrade from standard trims to low noise or cavitation control trims
  • Minimal vibration and wear of trim through sturdy plug design

Linear Globe/Angle Control Valves

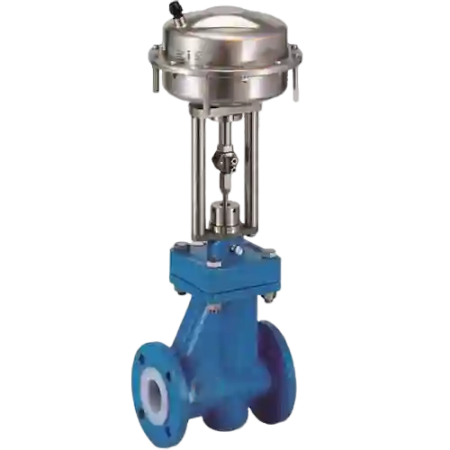

5560

Corrosive fluids, including both gases and liquids, require special attention when it comes to the materials used to build the valve.

  • PED Directive 97/23/EC
  • CRN Certification (Canadian Registration)
  • ATEX Directive 94/9/EC
  • Size Range: 0.5 to 6, DN 15 to DN 150
  • Pressure Class Range: 150, PN 16
  • Seating Material: PTFE

  • High Quality liner materials
  • Liner material thickness
  • T-grooves
  • Standard PN 16 bellows seal
  • DIN and ANSI bodies
  • Anti-blowout stem design

Linear Globe/Angle Control Valves

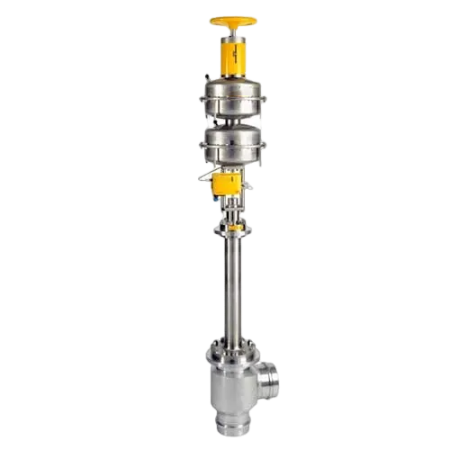

5570

Optional special gaskets and packing can be used to operate at temperatures as low as -69 °C. Depending on the application, Flowserve cryogenic valves are available with a top entry design for the easy maintenance of valves located in a cold box or with a simple extended bonnet attached to the valve body.

  • PED Directive 97/23/EC
  • CRN Certification (Canadian Registration)
  • ATEX Directive 94/9/EC
  • Size Range: 1 to 8, DN 25 to DN 200
  • Pressure Class Range: 150 to 600, PN 16 to PN 63
  • Seating Material: 300 series s.s., alloy 6, Monel, other materials, (PCTFE soft seat)

  • Coldbox valve for air separation applications
  • Optional use for LNG
  • Aluminum body
  • Top entry design for most valve sizes
  • seperable plug for easy maintenance

Linear Globe/Angle Control Valves

5580

Valves with pressure classes above PN40 or ANSI Class 300 are considered by Flowserve as "high pressure" designs.

  • PED Directive 97/23/EC
  • CRN Certification (Canadian Registration)
  • ATEX Directive 94/9/EC
  • Size Range: 1 to 8, DN 25 to DN 200
  • Pressure Class Range: 150 to 1500
  • Seating Material: 300 series s.s., 400 series s.s., alloy 6, Monel, Hastelloy, Inconel, other materials, (PTFE soft seat)

  • Robust design
  • Clamped/Retained seat design
  • High rangeability
  • Severe Service trim options
  • Unbalanced or balanced design
  • Fully NACE compliant
  • High performance multispring diaphragm actuators
